SPECIFICATIONS

Brand Name: Sweetmile

Certification: NONE

Exhausting Method: Open Type

Feature: Smoothtop

Gas Type: LPG / NG Gas

High-concerned chemical: None

Ingition Mode: Piezoelectric Ceramic Ignition

Installation: Built-In,Built-in

Material: Tempered glass

No. of Burner: 5

Origin: Mainland China

Panel Thickness: 7mm/0.28in

Power (W): 120w

Power Source: Gas,Gas

Structure: Built-In

Type: Integrated Cooktop

Voltage: 220 V

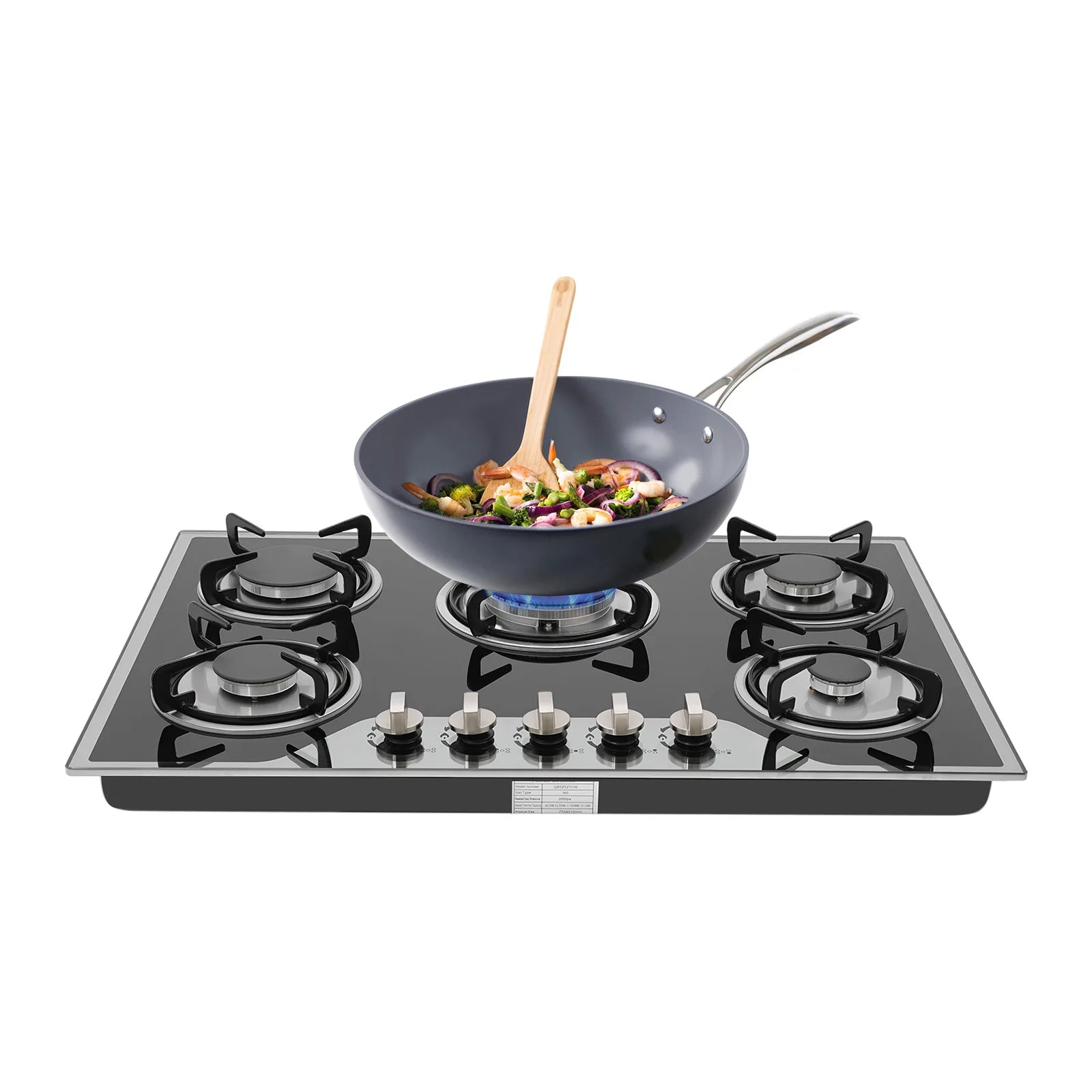

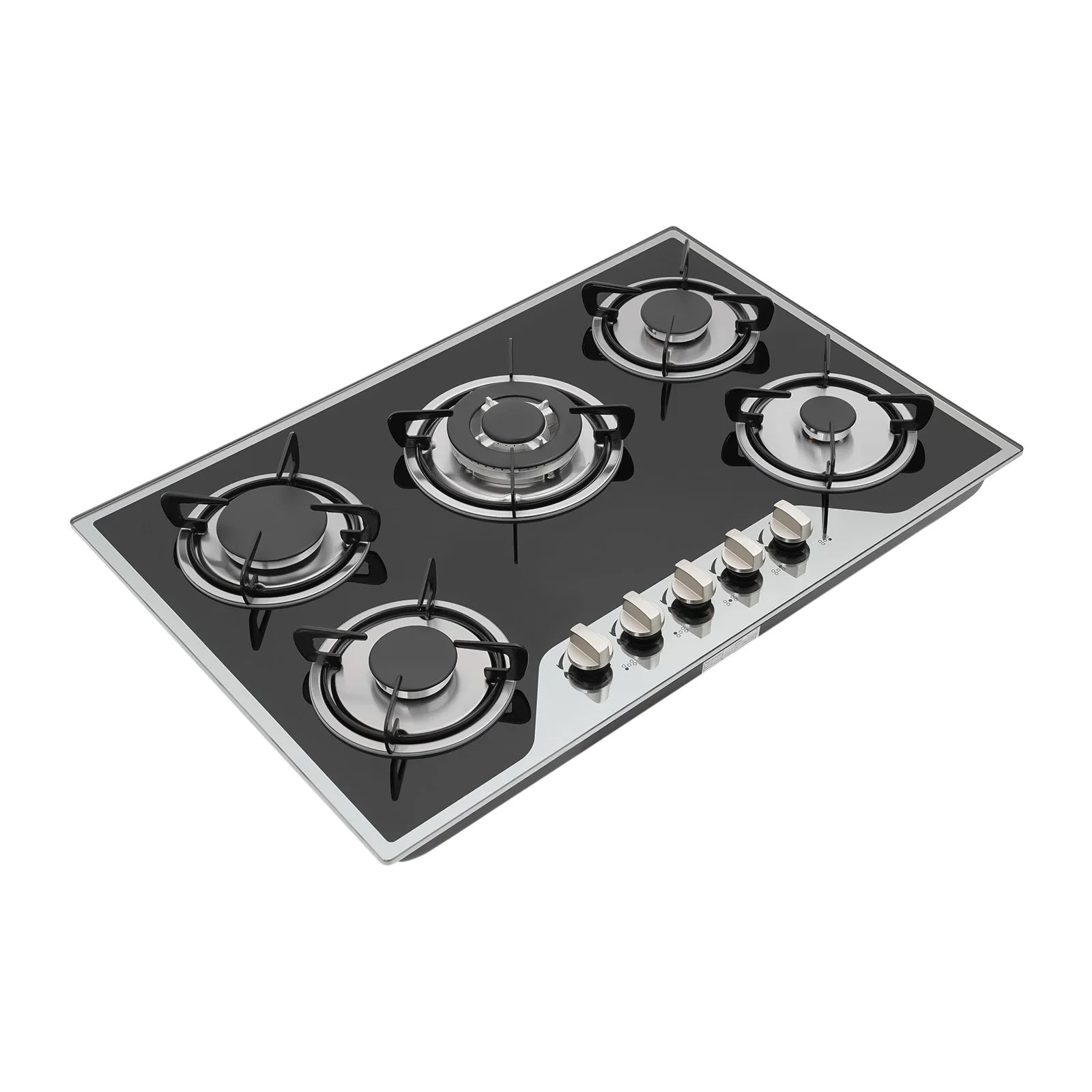

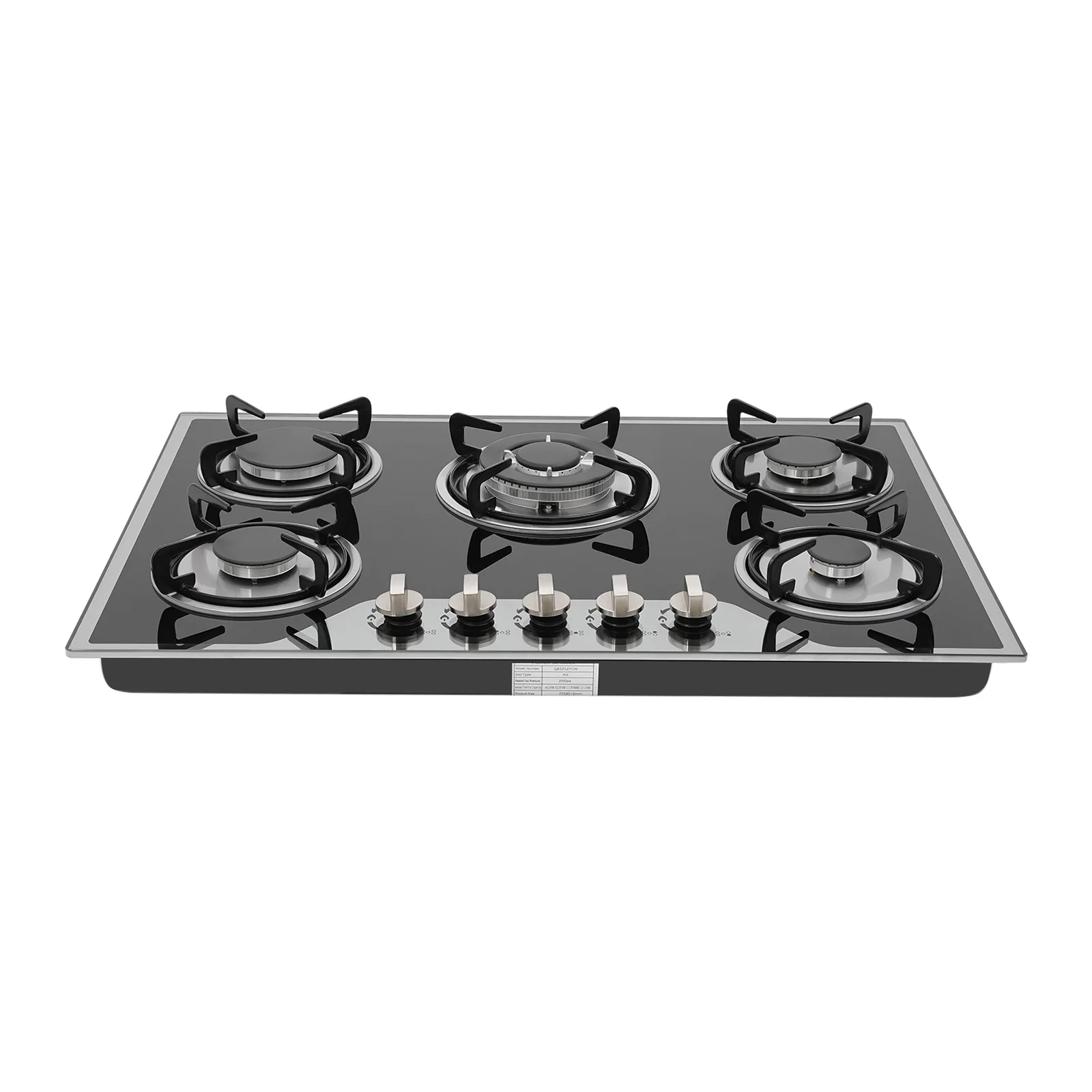

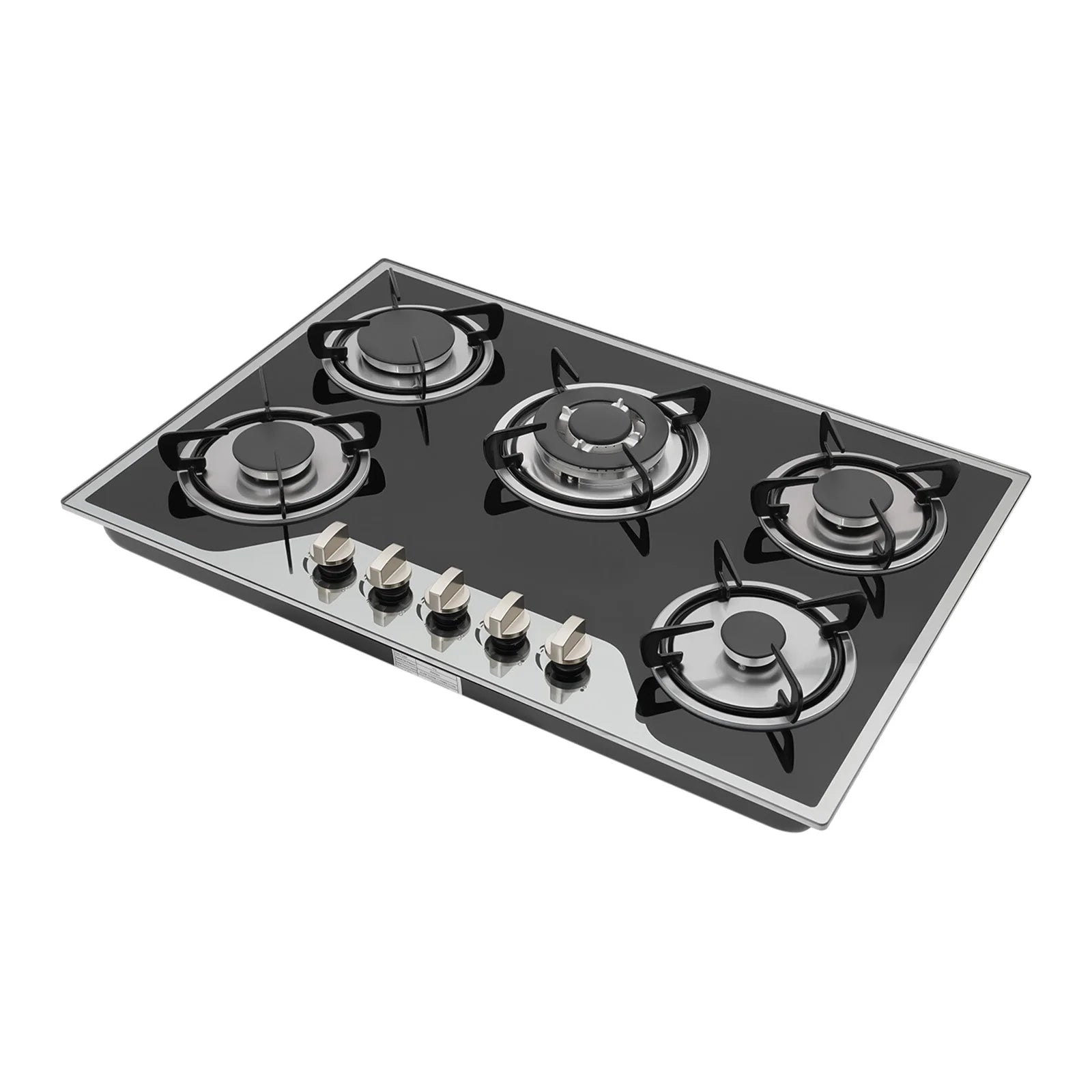

5 Burner Gas Hob Stainless Steel, LPG/NG Convertible Cooktop With 5 Individual Burners, Natural Gas Cooktop With Cast Iron Grates for Kitchen

Application

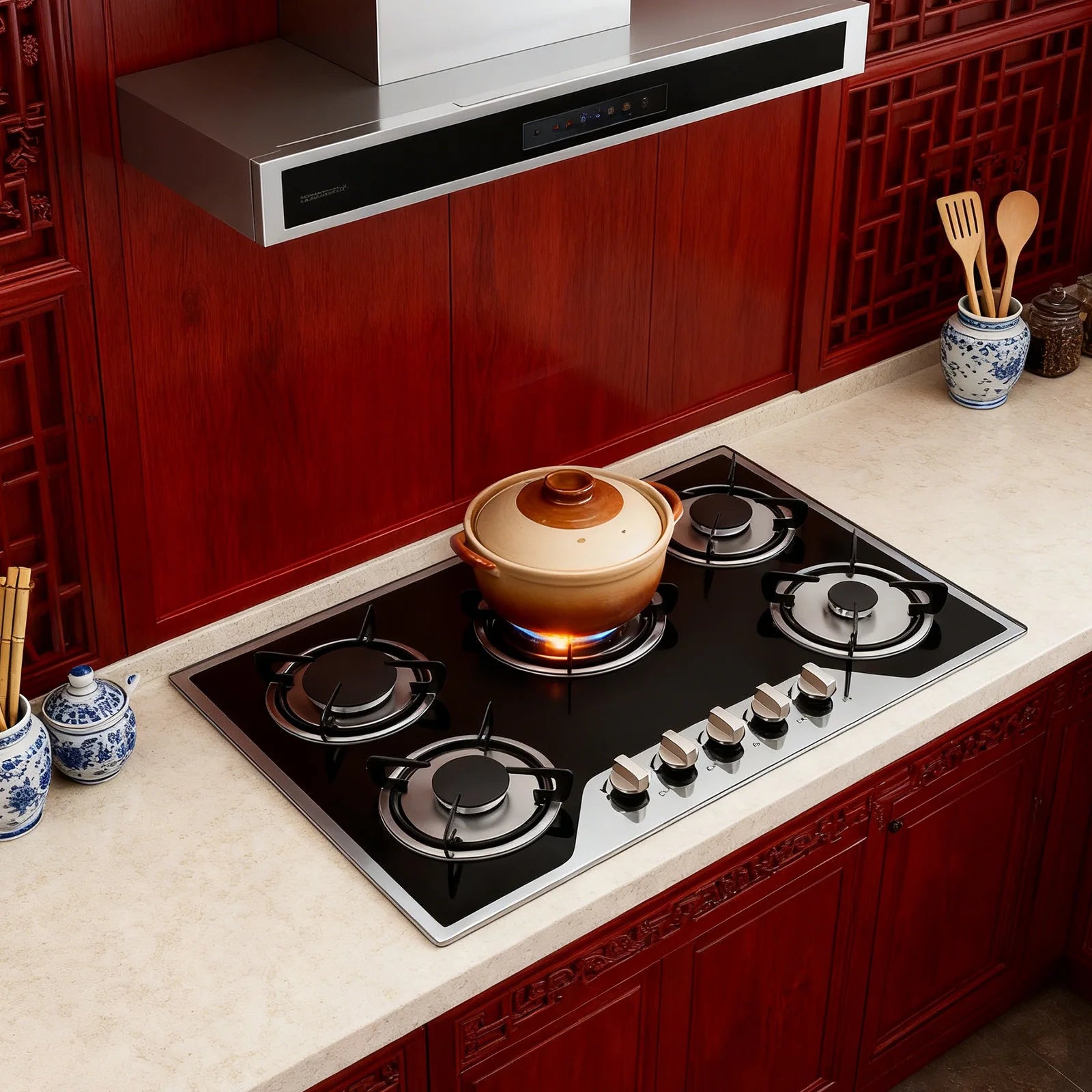

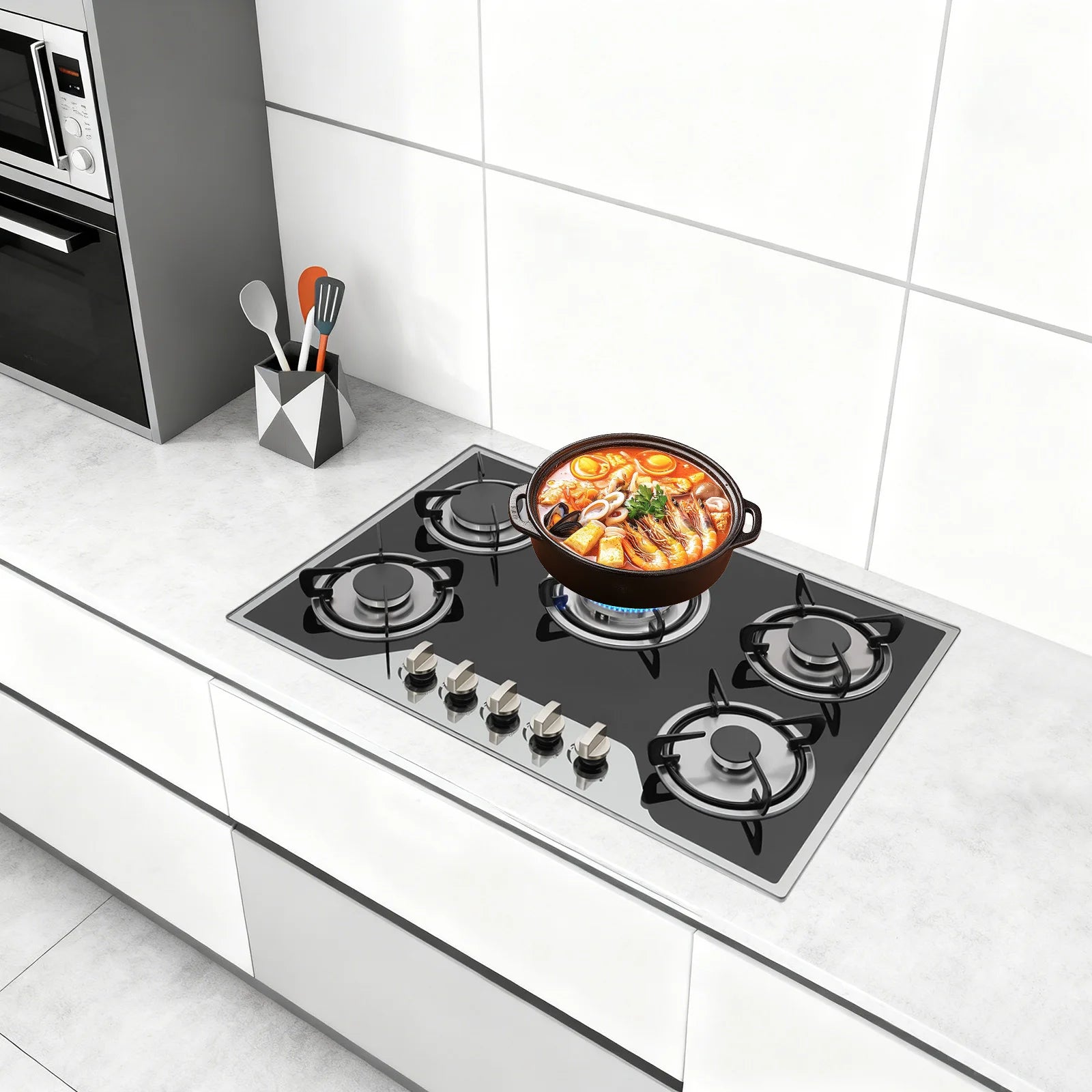

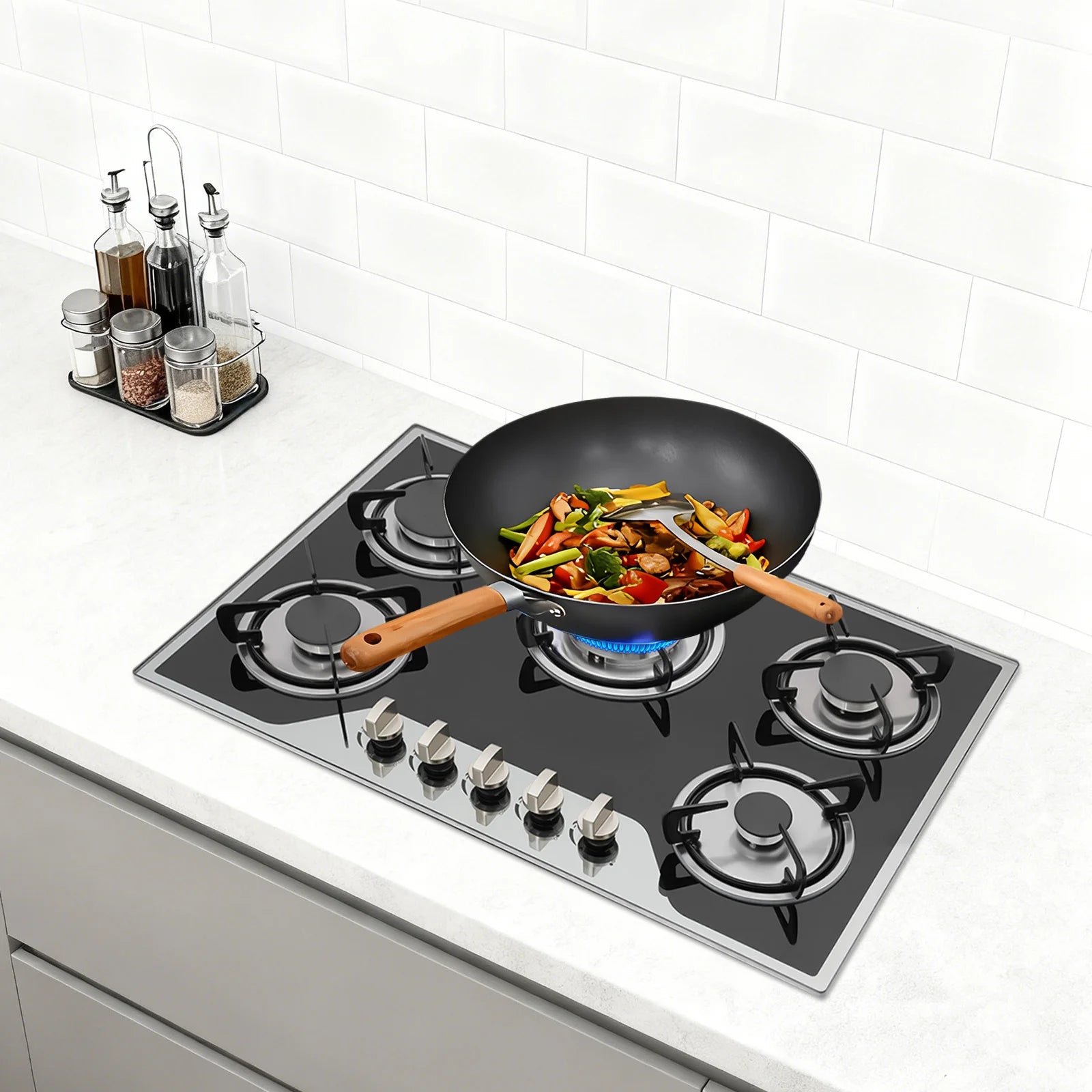

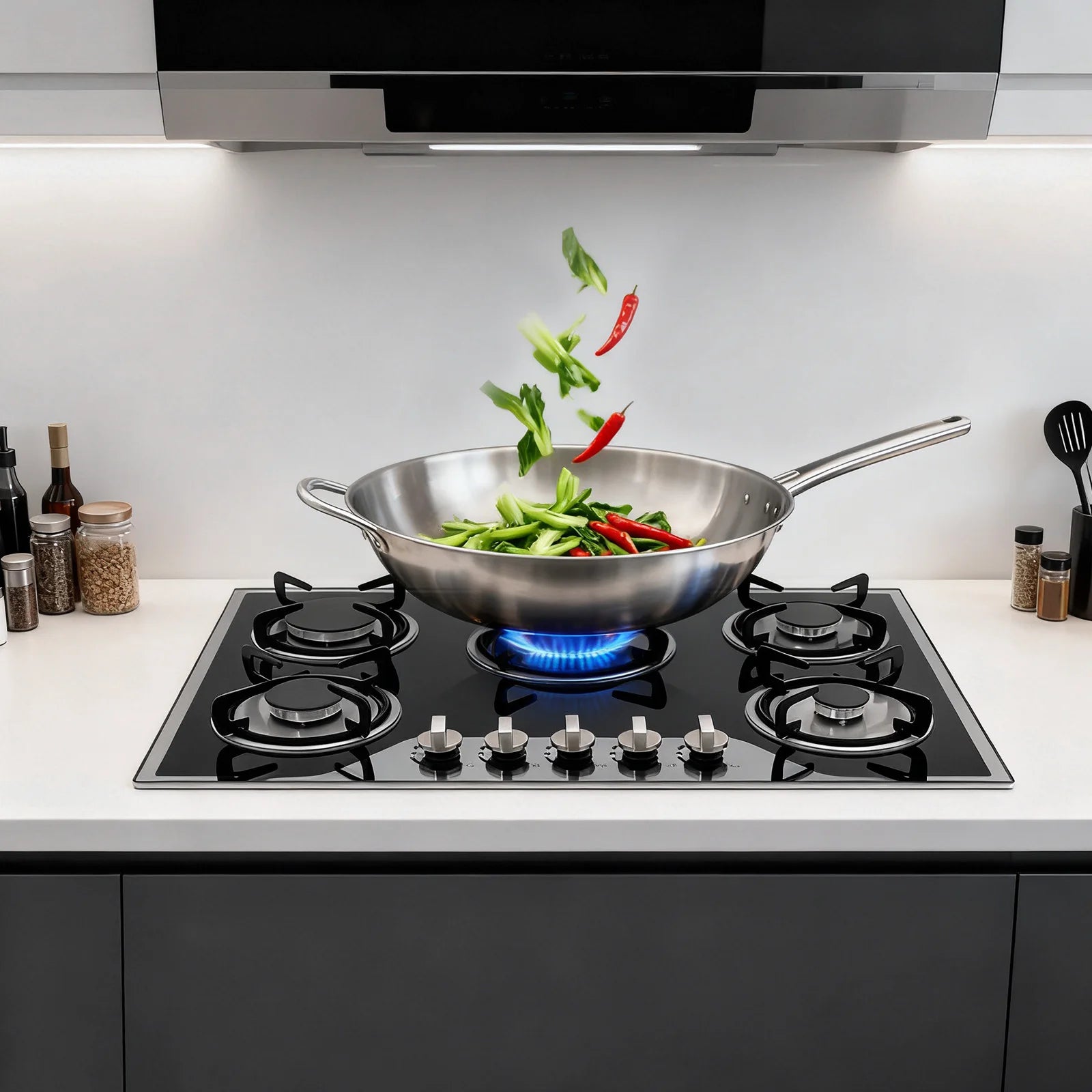

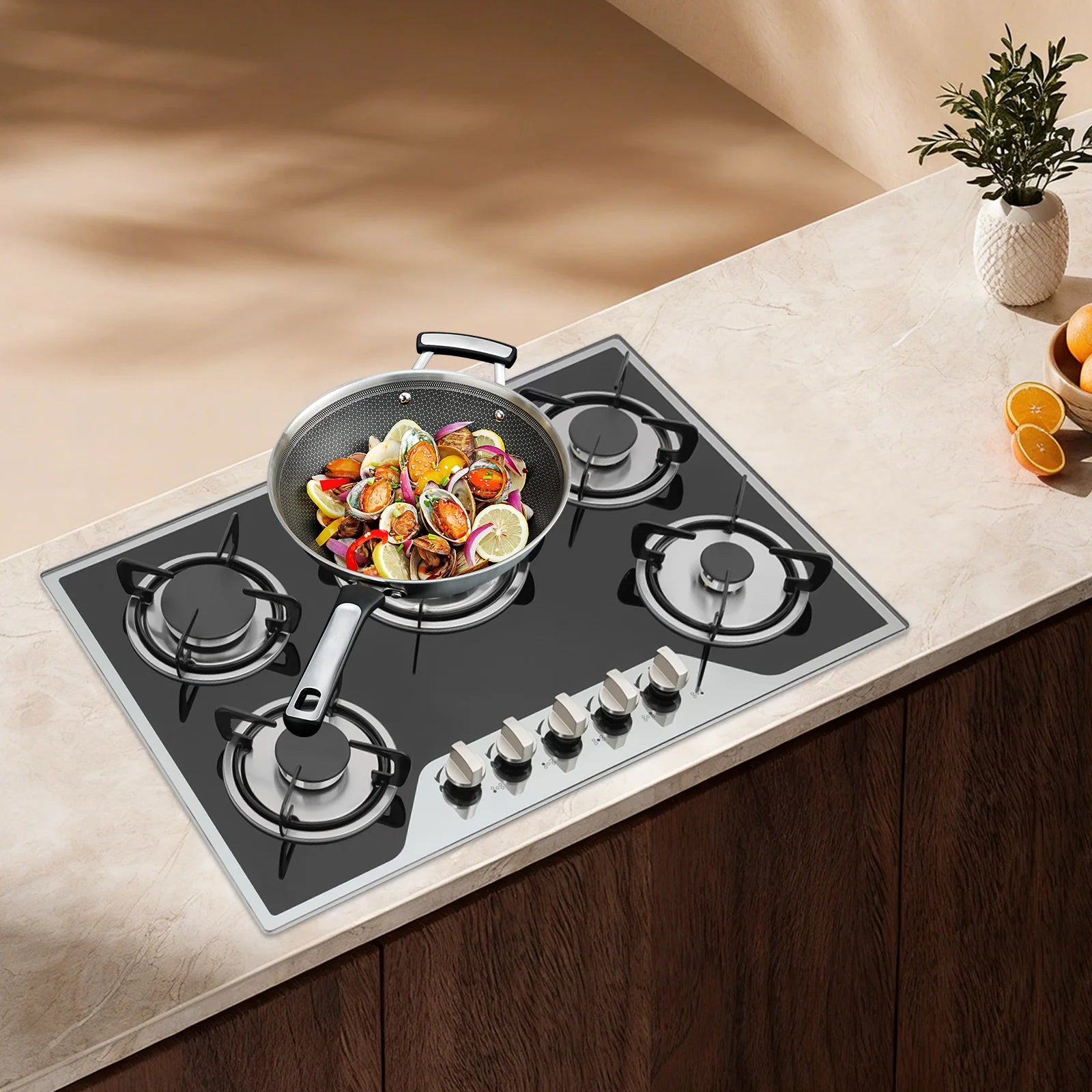

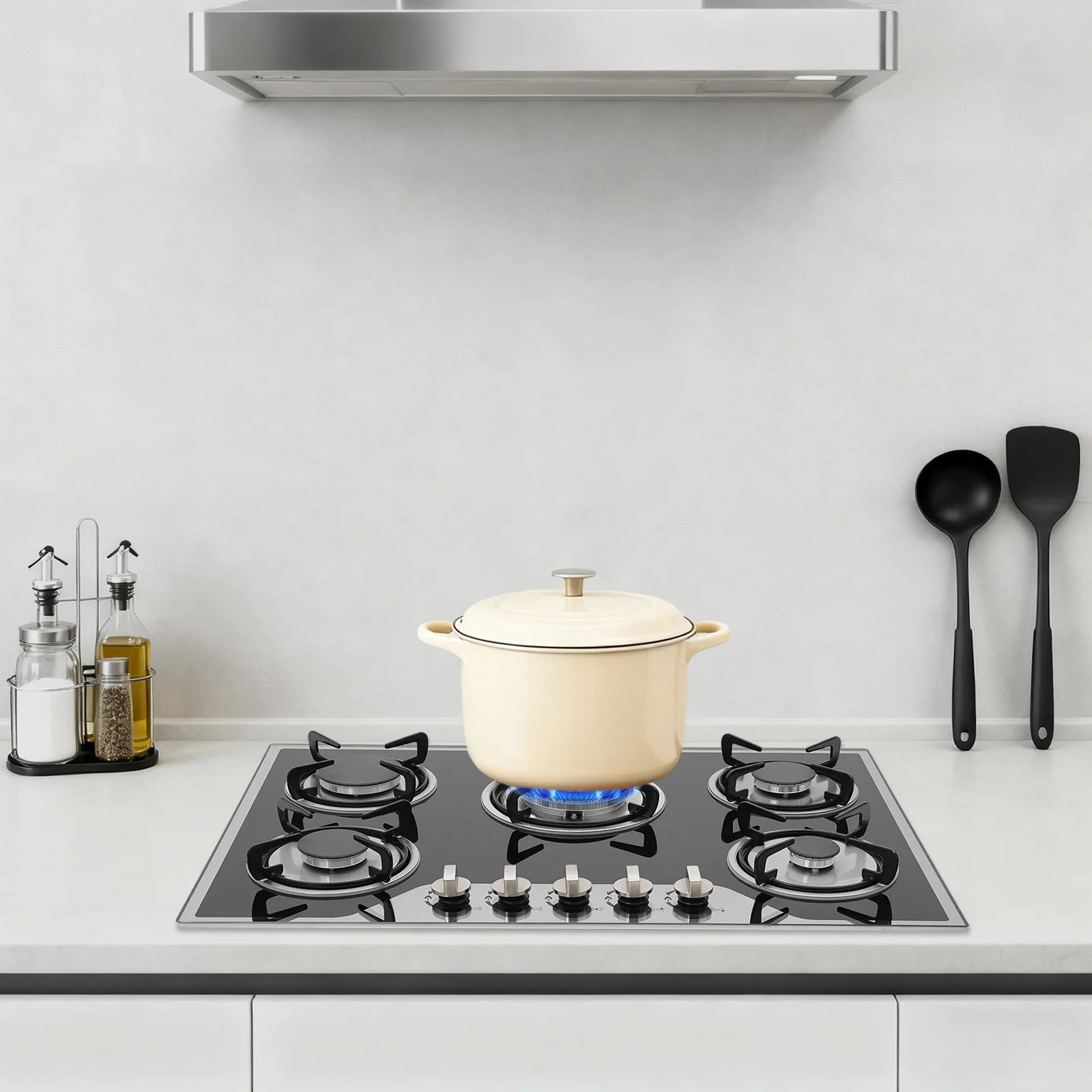

This product can be widely used in home kitchens, restaurants, hotels, homestays, schools, canteens, and other places.

Details

🥇Large Panel: The 30.31*20.08 longer and wider design makes the cooking countertop and operating space more spacious, and five burners can be used at the same time without crowding.

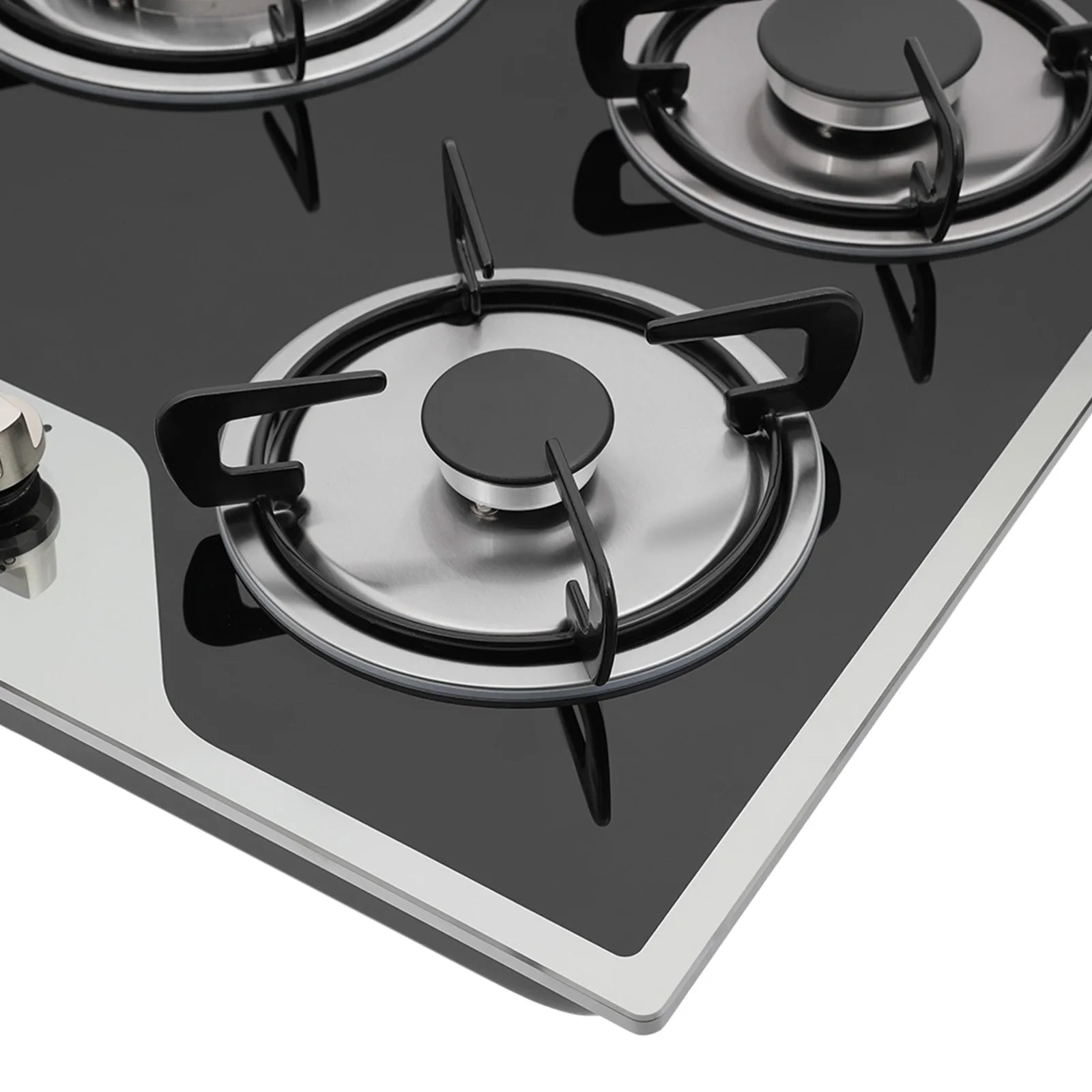

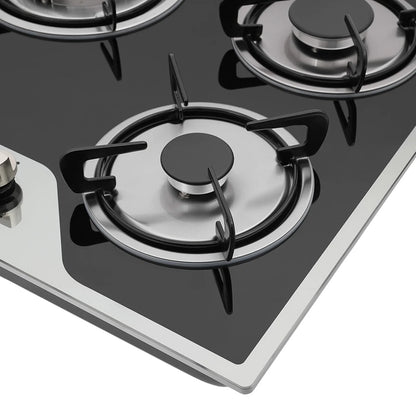

🥇Boiler Bracket: It holds the pot securely.

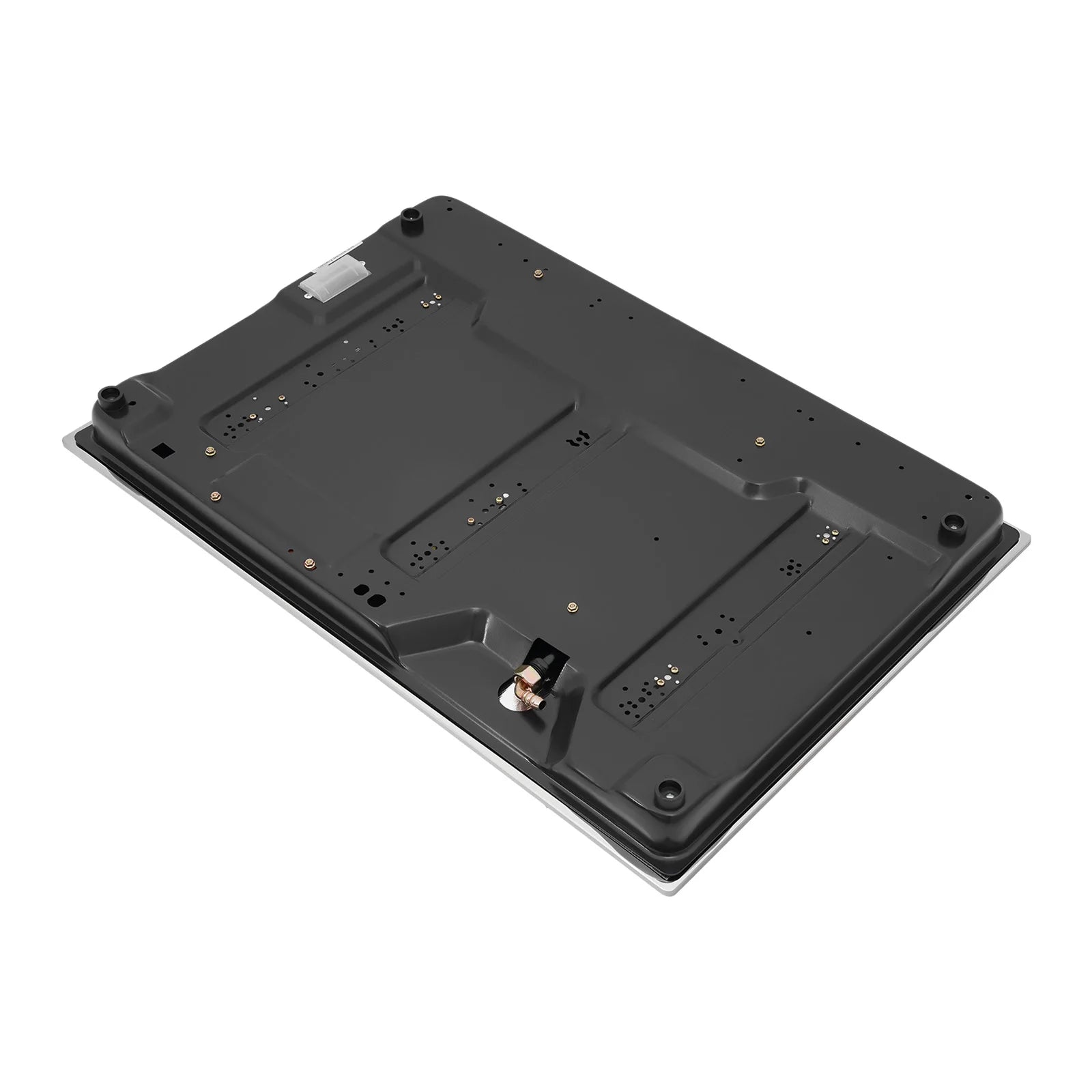

🥇Anti-slip Feet: They prevent the product from slipping and avoid scratching the countertop.

🥇Burner Caps: They are covered on the burners to prevent excessive release of gas and backfire, ensuring safe use.

Specification

Material: Cold Rolled Steel Plate, Aluminium Alloy, Glass, Bakelite

Process: High-temperature Baking Paint, 1472℉ High-temperature Toughening

Assembly Required: Yes

Installation: Built-in

Panel Thickness: 7mm/0.28in

Recommended Opening Size: 73*47cm/28.74*18.5in

Minimum Embedment Depth: 10cm/3.94in

Gas Type: LPG / NG Gas

Air Intake Mode: Upper Air Intake

Ignition Type: Battery Automatic Pulse Ignition

Controls Type: Knob

Color: Black

Power Source: Gas Powered

Shape: Rectangular

Energy Efficiency Class: 2

Number of Burners: 5

Stove Power: 3.2kw, 2.75kw, 1.75kw, 1.75kw, 1kw

Battery: 1*D Battery (Not Included)

Threaded Connector Size: 1/2 inch

Hose Connector Inner Diameter: 9.5mm/0.37in

Melting Point of the Stove Head: 475-625°C/887-1157°F

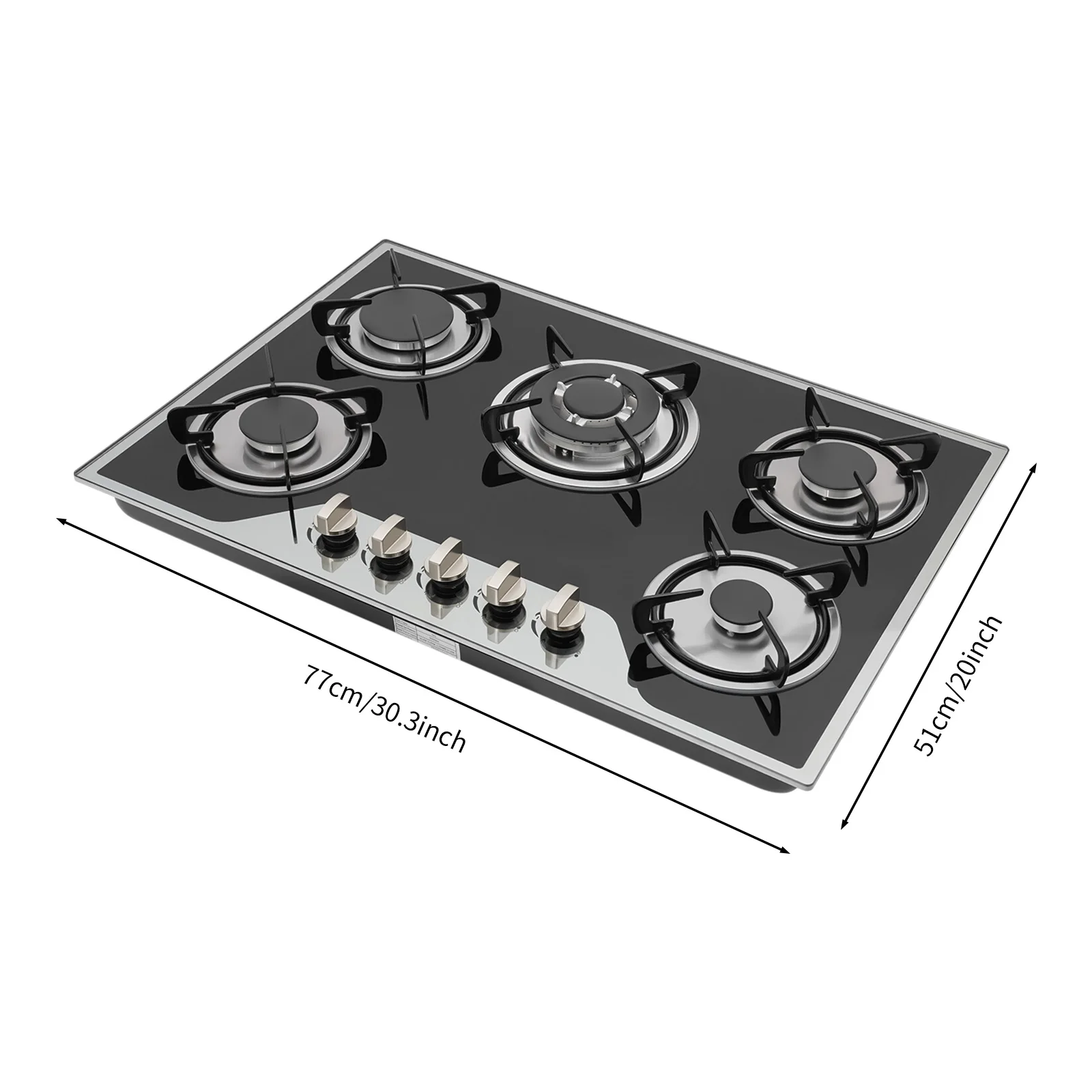

Product Size: 77*51*15cm/30.31*20.08*5.91in

Package Size: 83*55.5*18cm/32.68*21.85*7.09in

Gross Weight: 13.35kg/29.43lbs

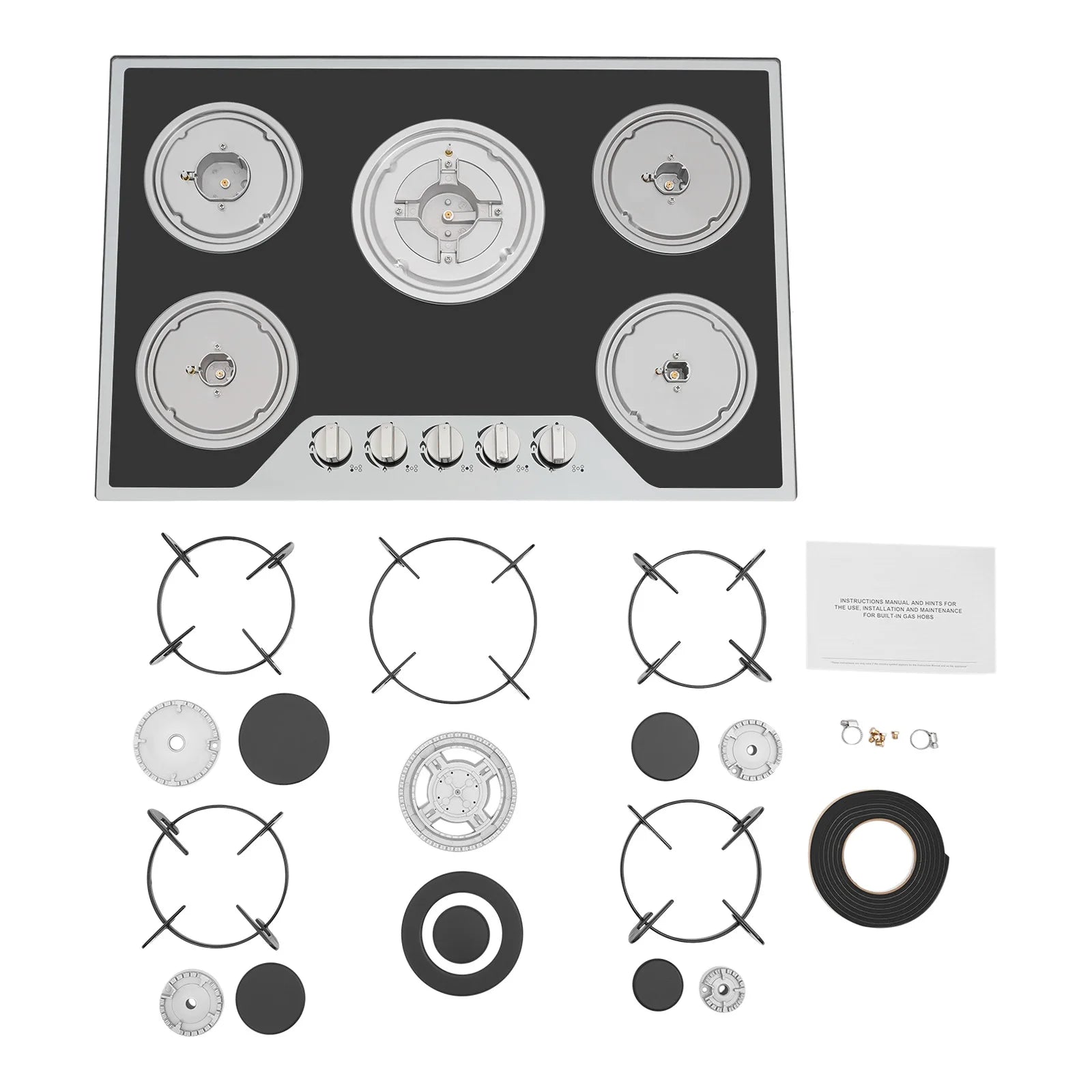

Package Included

1 *5-Burner Gas Hob

5* Nozzles

1*English Manual

Other Accessories for Assembly

Notes

1. Please check the size carefully before ordering.

2. Please remember to use a non-abrasive cleaner and wait until the cooktop has cooled down before you start cleaning!

3. Please note that this product uses NG for the outgoing setting, you can convert using the supplied LPG nozzle.

4. Please do not place freshly heated cookware directly on the glass panel.

5. We recommend professional installation to prevent the use of electricity and gas safety hazards.

6. Minors and the elderly are advised to use the product safely under supervision.

7. Please do a leak test after successful installation and should be used in a ventilated area. Do not use on wooden tables or table tops covered with tablecloths as this can lead to high temperatures and spontaneous combustion.

8. Please note that this product does not include food, cooking pots, or gas canisters.

9. Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
